Bandsaw Plans with 16" Wheels and Tilting Table – Detailed Build Guide + Video

After months of designing, building, testing, and refining, the plans for this 16" bandsaw are finally finished! 🛠️

This is not a plan created from a sketch or a quick prototype. Every part of the design has been developed around precision, adjustability, and repeatable results. The goal was to create a bandsaw that can be built accurately using common woodworking tools, without leaving critical details to chance.

📏 IMPERIAL & METRIC PLANS

The plans include both imperial and metric versions. Each version is specifically designed around its measurement system rather than simply converting the dimensions, so you won't end up with awkward converted measurements.

🎥 90-MINUTE BUILD VIDEO

Your purchase also includes access to the complete 90-minute YouTube build video with voice-over and additional tips. The video follows the construction from start to finish and demonstrates different approaches and techniques that can make the build easier.

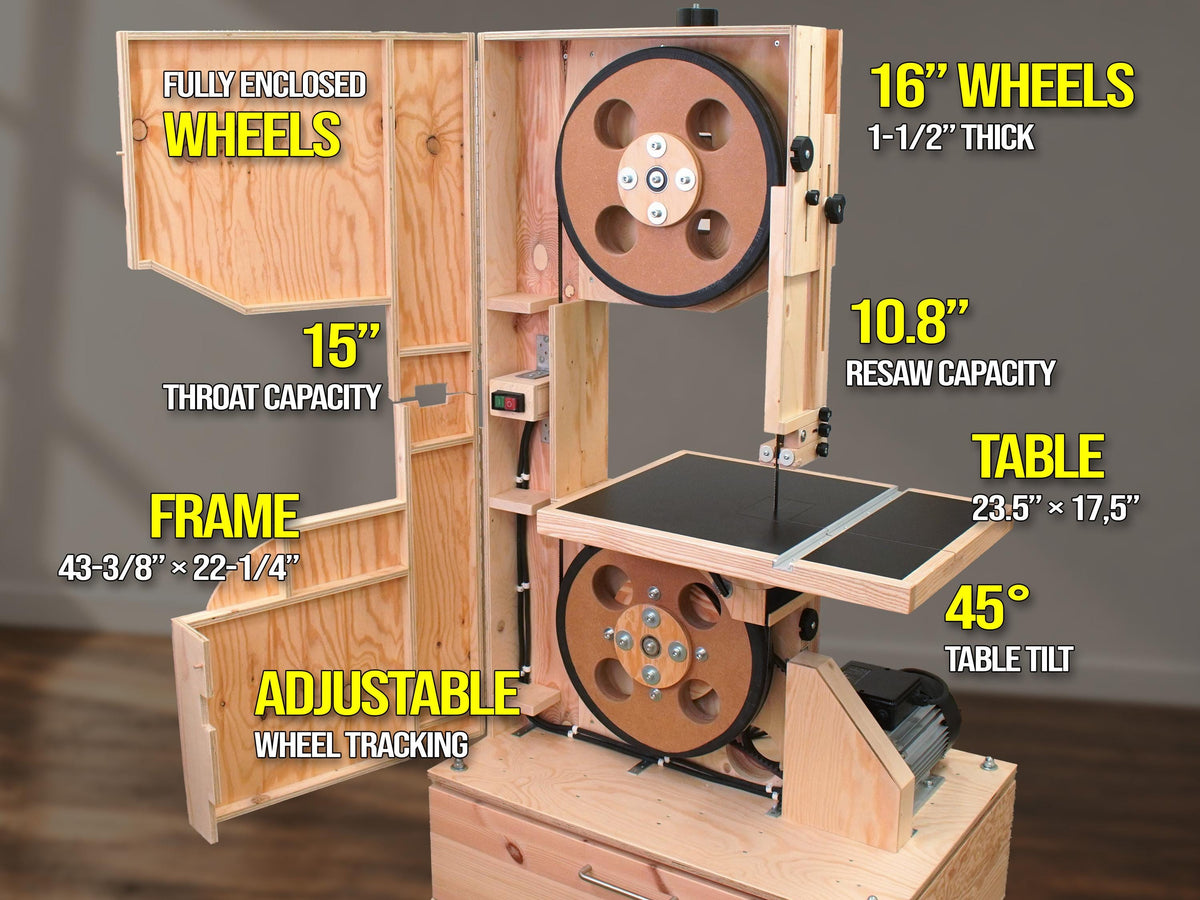

🪚 BANDSAW SPECIFICATIONS:
• 16" wheel diameter
• Approximately 10.8" resaw capacity
• Approximately 15" throat capacity
• 1.5 HP motor

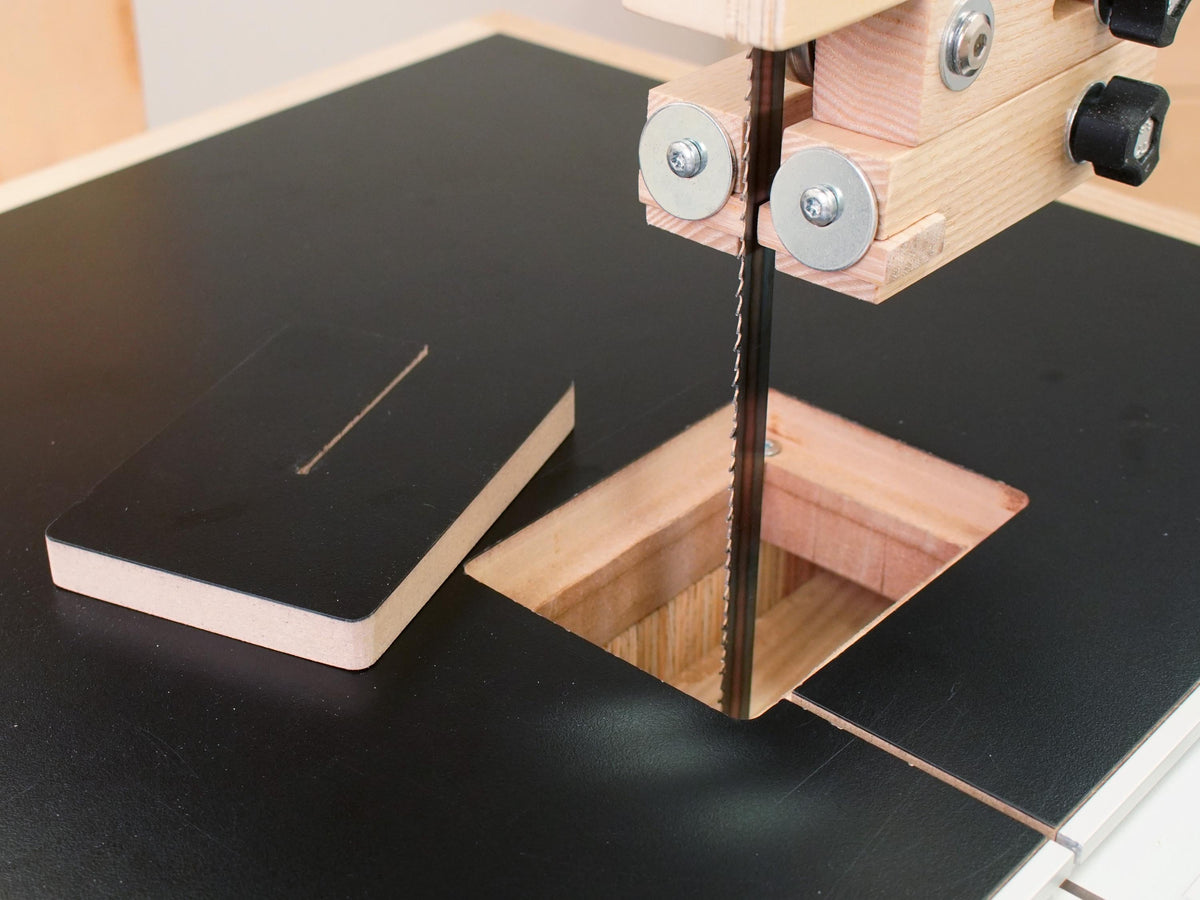

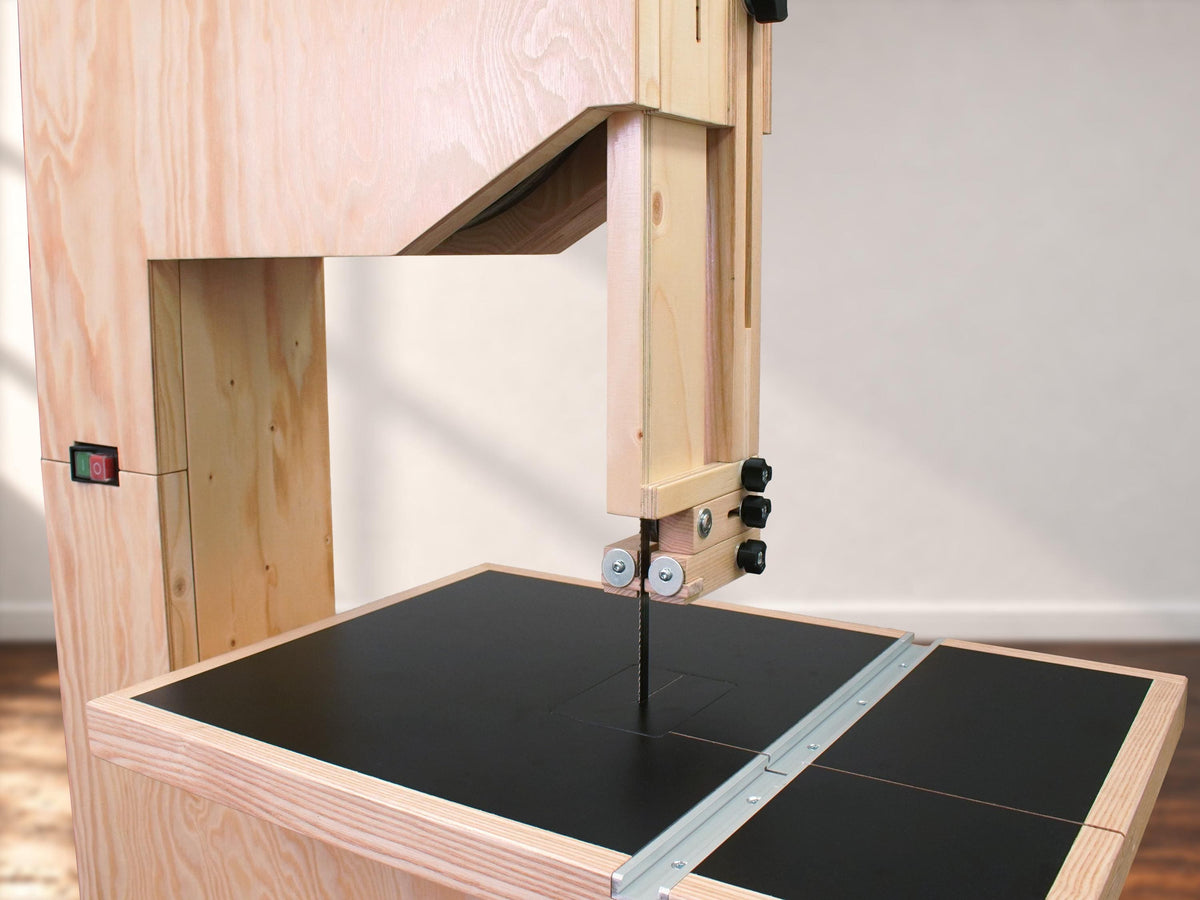

• 23.5" × 17.5" tilting work table
• 43-3/38" × 22-1/4" frame
• Table tilts up to 45°
• Fully enclosed wheels
• Adjustable blade tension and tracking
• Adjustable wheel alignment
• T-track in the table

⚙️ PRECISION & ADJUSTABILITY

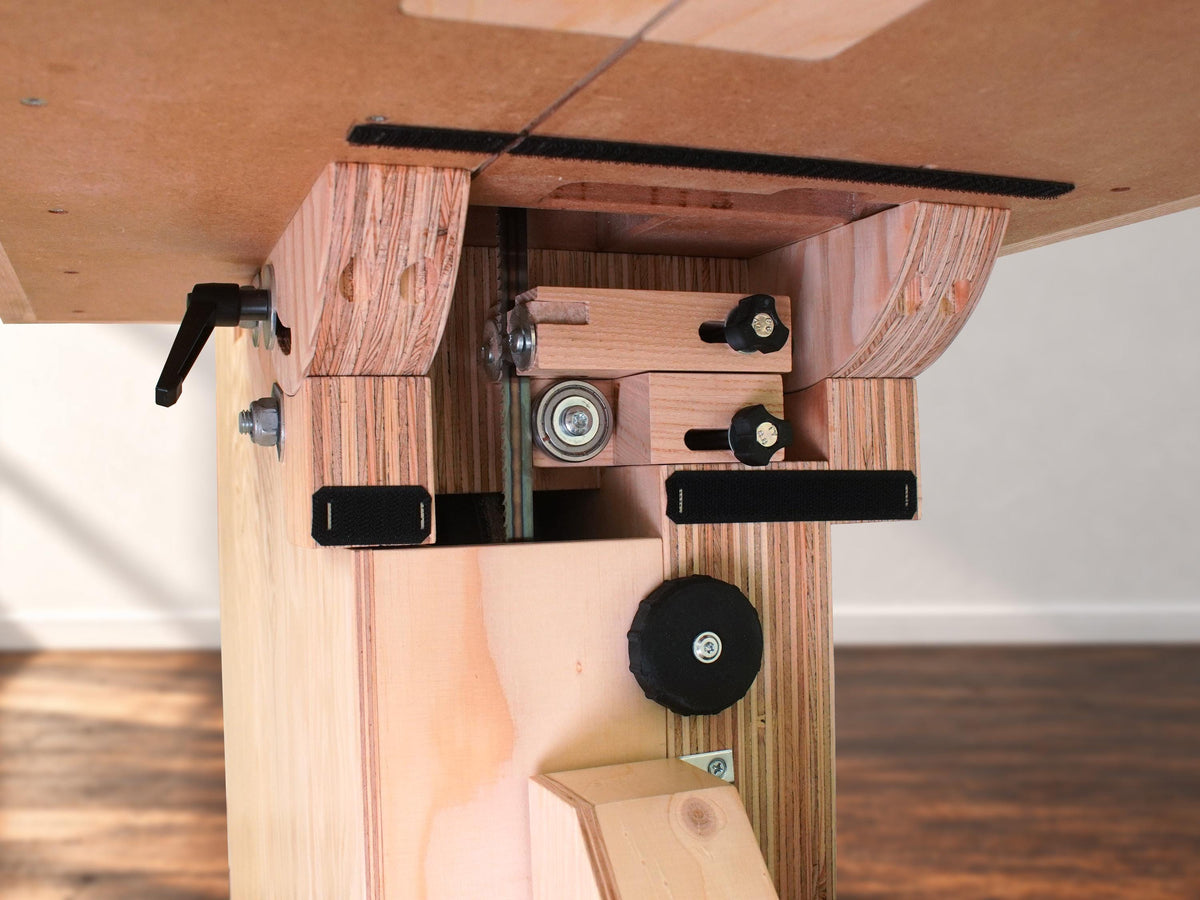

One of the main focuses of this design is the ability to properly align and calibrate the wheels.

Both wheel assemblies are adjustable, allowing the entire system to be carefully aligned for accurate blade tracking. The lower wheel can be adjusted laterally to compensate for alignment, making it possible to achieve precise results without relying on luck or perfect initial construction.

The 1-1/2" thick wheels also provide plenty of room for different blade widths.

🛠️ DESIGNED TO BE BUILT

The entire machine can be constructed using common woodworking machinery. No welding or specialized metal fabrication is required.

The main materials include plywood, hardwood, MDF, an H6 shaft, bearings, and other readily available hardware. Most of the mechanical components use standard parts.

The plans also include 3D files for several components, including knobs, locks, and a more complex wooden component that can otherwise be difficult to reproduce accurately.

📐 120 PAGES • 224 STEPS

The plans contain approximately 120 pages and 224 individual instructions and construction steps.

Each step focuses on a specific part or operation, with detailed drawings and dimensions to make the process easier to follow.

Included are:
• Detailed part drawings
• Step-by-step construction instructions
• Material and cut lists
• Hardware list
• Amazon links for most hardware
• Imperial and metric plans 📏
• Full-size printable templates for selected complex parts
• 3D files for selected components
• Complete assembly information

📄 FULL-SIZE TEMPLATES

For selected complex parts, printable full-size templates are included. These can be printed, attached directly to your material, and used as a guide for cutting and drilling.

This makes it possible to reproduce some of the more complicated shapes accurately without having to transfer every dimension manually.

🛡️ SAFETY & DUST COLLECTION

The wheels are completely enclosed, and the blade is protected with a dedicated blade guard and upper and lower blade guides.

The design also includes provision for dust collection, with an area intended for adding your own dust port according to your preferred system.

The power switch uses a no-volt release safety design, helping prevent the saw from automatically restarting after a power interruption.

📦 DIGITAL DOWNLOAD

This is a digital woodworking plan. No physical product or finished bandsaw will be shipped.

This project is intended for experienced DIY builders and woodworkers who want to build their own full-size bandsaw and have the ability to carefully follow detailed construction and assembly instructions.

As with any homemade power tool, the builder is responsible for proper construction, electrical installation, safety precautions, and safe operation.
